| Thresher Drum R.P.M | Cleaning System | Performance output approx /per Hour | Approx weight of Thresher | Tractor HP Required |
|---|---|---|---|---|
| Required (6OO to 75O R.P.M for different crops) | Variable Speed Attachment of 750 TO 1OOO R.P'M | Wheat = 700 to 750 Kg. (Approx) Jawar = 1100 to 1200 kg. (Approx) Soyabean = 600 to 650 Kg. (Approx) Channa (Blackgram) = 600 to 650 Kg. (Approx) |
1080 to 1100 kg. (+/-5%) | Minimum and Above = 40 HP. |
| Performance output approx /per Hour | Approx weight of Thresher | HP Required |
|---|---|---|
|
Wheat = 400 to 450 Kg. (Approx) Jawar = 750 to 800 kg. (Approx) Soyabean = 350 to 400 Kg. (Approx) Channa (Blackgram) = 350 to 400 Kg. (Approx) |
580 to 610 kg. (+/-5%) | By Induction motor 7.5 H.P. or as well as Diesel Engine 10 H.P |

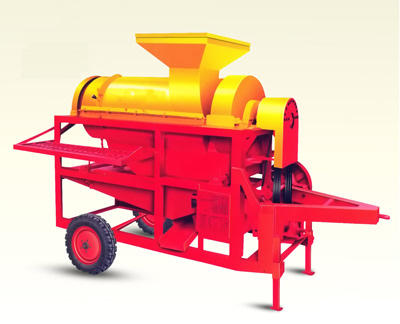

| Maize Sheller Model / Type | Performance output approx / per Hour | Approx weight of Maize Thresher Only | Tractor HP Required |
|---|---|---|---|
| Tractor and Diesel engine driven (Optional) | Maize without Skin = 3.5 to 4 Ton (Approx) Maize with Skin = 2.5 to 3 Ton (Approx) |
1050 kg. (+/-5%) | Minimum and Above = 30 HP. |

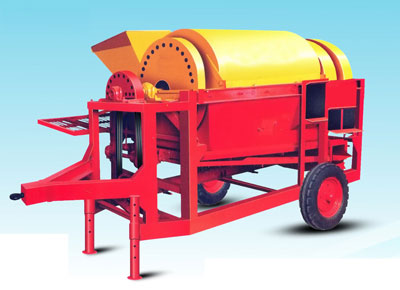

| Paddy Thresher | Output Kgs / hours(Standard Condition) | Approximate weight of Paddy Thresher only | Power Required in HP |
|---|---|---|---|
| Tractor and Diesel engine / Motor driven (optional) | 1000-1200 kgs /hour (Tractor Driven Model) 400-500 kgs /hour (Engine / Motor Model) |
1370 kg. (+/-8%) (Tractor Driven Model) 510 kg (+8%) (Engine / Motor Modol) |
Minimum and Above 35 HP (Tractor Model) 7.5 H.P. lnduction Motor or 10 H.p. Diesel Engine |
The weight, working data and photo of the implement, contained in the present leaflet/website are supplied for information only and are not binding. Specification and size can be altered as part of ongoing R&D work
